SUPCO S-1650X
16GA Finish Nailer
[+] Click image below
Application
- Molding
- Finish & trim
- Cabinet work
- Door & window 		.
- Stairs cases
- Paneling

.
16 GA. BRAD NAILER 2"

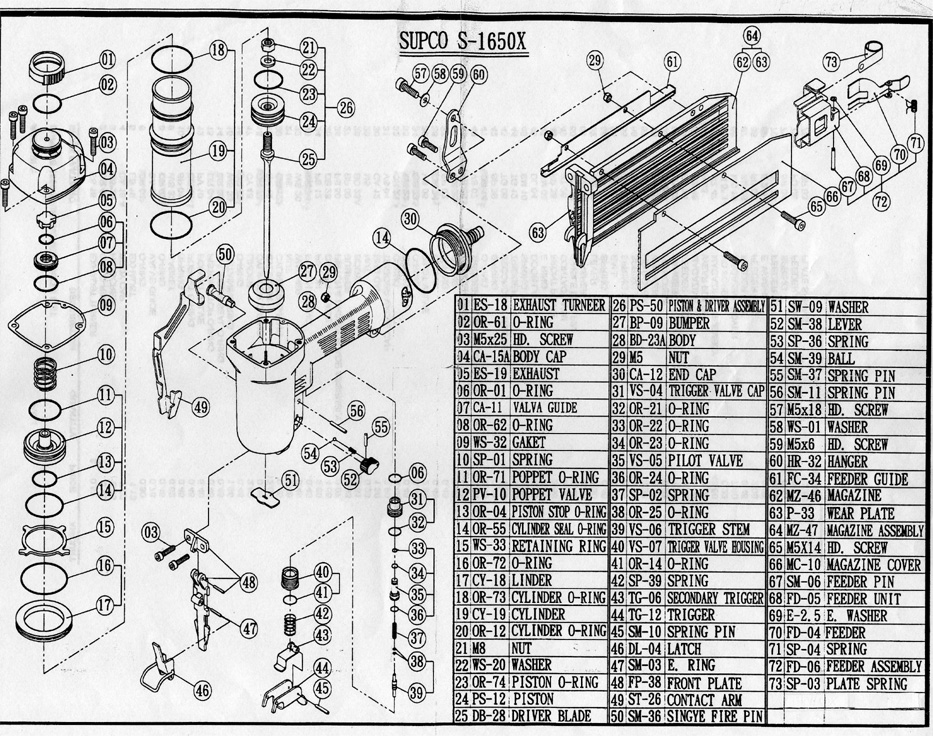

Part diagram: PDF JPEG List: WORD
Wire size: 16GA
Weight: 1.6kg (3.5lb)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
 ES-18
OR-61
M5*25
CA-15A
ES-19
OR-01
CA-11
OR-62
WS-32
SP-01
OR-71
PV-10
OR-04
OR-55
WS-33
OR-72
CY-18
OR-73
CY-19
OR-12
M8
WS-20
OR-74
PS-12
DB-28
PS-50
BP-09
BD-23A
M5
CA-12
VS-04
OR-21
OR-22
OR-23
VS-05
OR-24
SP-02

EXHAUST TURNER
CAP O RING
HD SCREW
BODY CAP
EXHAUST TURNER
O RING
VALVE GUIDE
O RING
GASKET
SPRING
POPPET O RING
POPPET VALVE
PISTON STOP O RING
CYLINDER SEAL O RING
RETAINING RING
O RING
LINDER
CYLINDER O RING
CYLINDER
CYLINDER O RING
NUT
WASHER
PISTON O RING
PISTON
DRIVER BLADE
PISTON & DRIVER BALDE ASSEMBLY
BUMPER
BODY
NUT
END CAP
TRIGGER VALVE CAP
O RING
O RING
O RING
PILOT VALVE
O RING
SPRING

No. Part Item description
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
.		 OR-25
VS-06
VS-07
OR-14
SP-39
TG-06
TG-12
SM-10
DL-04
SM-03
FP-38
ST-26
SM-36
SW-09
SM-38
SP-36
SM-39
SM-37
SM-11
M5*18
WS-01
M5*6
HR-32
FC-34
MZ-46
P-33
MZ-47
M5*14
MC-10
SM-06
FD-05
E2.5
FD-04
SP-04
FD-06
SP-03
.

O RING
TRIGGER VALVE HOUSING
TRIGGER VALVE HOUSING
O RING
SPRING
SECONDARY TRIGGER
TRIGGER
SPRING PIN
DOOR LATCH
E RING
FRONT PLATE
CONTACT ARM
SINGLE FIRE PIN
WASHER
LEVER
SPRING
BALL
SPRING PIN
SPRING PIN
HD SCREW
WASHER
HD SCREW
HANGER
FEEDER GUIDE
MAGAZINE
WEAR PLATE
MAGAZINE ASSEMBLY
HD SCREW
MAGAZINE COVER
PIN
FEEDER UNIT
E WASHER
FEEDER
SPRING
FEEDER ASSEMBLY
PLATE SPRING
.
