SUPCO SCN-138
Coil Nailer

[+] Click image below
Application
Pallet


.
COIL NAILER 0.099" X 2 1/2" (65mm), BOSTITCH

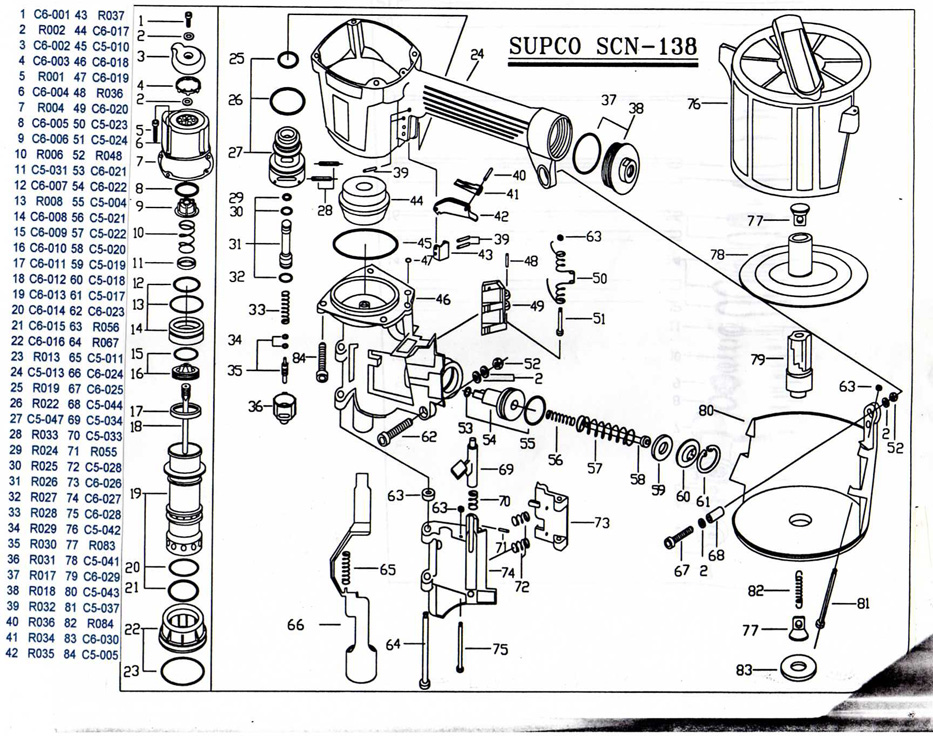

Part diagram: PDF JPEG List: WORD
Wire size: 0.099"
Weight: 5.7 Lbs. ( 2.6 Kg.)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42 		C6-001
R002
C6-002
C6-003
R001
C6-004
R004
C6-005
C6-006
R006
C5-031
C6-007
R008
C6-008
C6-009
C6-010
C6-011
C6-012
C6-013
C6-014
C6-015
C6-016
R013
C5-013
R019
R022
C5-047
R033
R024
R025
R026
R027
R028
R029
R030
R031
R017
R018
R032
R036
R034
R035

SCREW
PLAIN WASHER
EXHAUST COVER
EXHUAST FILTER
SCREW
CAP ASSEMBLY
GASKET
PISTON STOP
EXHAUST BUMPER
HEAD VALVE SPRING
SPRING SEAT
O-RING
O-RING
HEAD VALVE
O-RING
MAIN PISTON
HEAD VALVE SEAL
DRIVER
CYLINDER
O-RING
O-RING
CYLINDER RING
O-RING
FRAME
O-RING
O-RING
TRIGGER VALVE HOUSING
STRAIGHT PIN
O-RING
O-RING
PILOT VALVE
O-RING
SPRING
O-RING
TRIGGER STEM
TRIGGER VALVE CAP
O-RING
HANDLE END CAP
ROLL PIN
ROLL PIN
CONTACT LEVER
TRIGGER

No. Part Item description
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84 		R037
C6-017
C5-010
C6-018
C6-019
R036
C6-020
C5-023
C5-024
R048
C6-021
C6-022
C5-004
C5-021
C5-022
C5-020
C5-019
C5-018
C5-017
C6-023
R056
R067
C5-011
C6-024
C6-025
C5-044
C5-034
C5-033
R055
C5-028
C6-026
C6-027
C6-028
C5-042
R083
C5-041
C6-029
C5-043
C5-037
R084
C6-030
C5-005

TRIP LEVER GUIDE
BUMPER
O-RING
NOSE
O-RING
ROLL PIN
FEED PAWL
FEED PAWL SPRING
STEP PIN
ELASTIC STOP NUT
O-RING
FEED PISTON
O-RING
SPRING
SPRING
SPRING GUIDE
FEED PISTON BUMPER
SPRING COLLAR
RETAINING RING
SCREW
RUBBER WASHER
STEP PIN
SPRING
CONTACT ARM
SCREW
MAGAZINE BUSHING
DOOR LATCH
SPRING
ROLL PIN
SPRING
CHECK PAWL
DOOR
STEP PIN
MAGAZINE COVER
RECEIVER, SPRING
PLATFORM ASSEMBLY
MAGAZINE POST
MAGAZINE
COVER HINGE PIN
SPRING
POST RETAINER
SCREW
