SUPCO SFS
15 GA. 1/2" CROWN STAPLER ( BOSTIICH CROWN)
[+] Click image below
Application
- Hard wood flooring


.

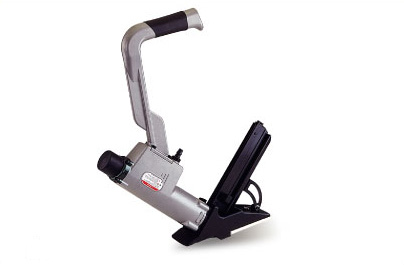

15 GA. 1/2"BOSTITCH CROWN STAPLER

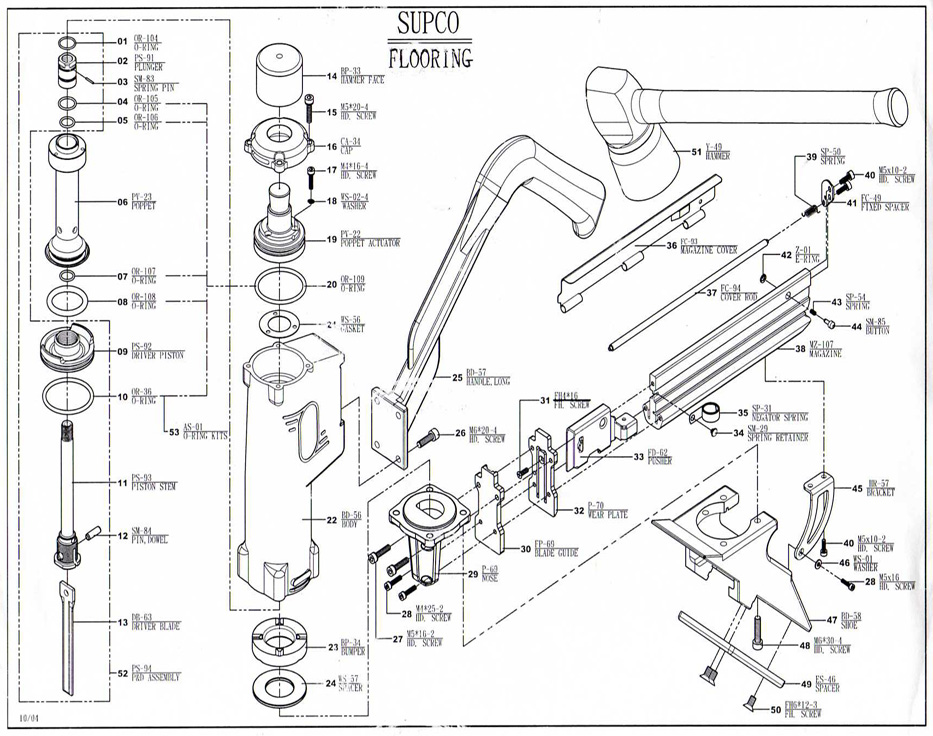

Part diagram: PDF JPEG List: WORD
Wire gauge: 15 GA
Weight: 4.83kg (10.62lb)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
OR-104
PS-91
SM-83
OR-105
OR-106
PV-23
OR-107
OR-108
PS-92
OR-36
PS-93
SM-84
DB-63
BP-33
M5*20-4
CA-34
M4*16-3
WS-02-3
PV-22
OR-109
WS-56
BD-56
BP-34
WS-57
BD-57
M6*20-4
O-RING
PLUNGER
SPRING PIN
O RING
O RING
POPPET
O RING
O RING
DRIVER PISTON
O RING
PISTON STEM
PIN
DRIVER BLADE
HAMMER FACE
HD SCREW
CAP
HD SCREW
WASHER
POPPET ACTUATOR
O RING
GASKET
BODY
BUMPER
SPACER
HANDLE, LONG
HD SCREW
No. Part Item description

27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

M5*16-2
M4*25-2
P-69
FP-69
FH4*6
P-70
FD-62
SM-29
SP-31
FC-93
FC-94
MZ-107
SP-50
M5*10-2
FC-49
Z-01
SP-54
SM-85
HR-57
WS-01
BD-58
M6*30-4
ES-46
FH6*12-3
Y-49
PSSFS

HD SCREW
HD SCREW
NOSE
BLADE GUIDE
FH SCREW
WEAR PLATE
PUSHER
SPRING RETAINER
NEGATOR SPRING
MAGAZINE COVER
COVER ROD
MAGAZINE
SPRING
HD SCREW
FIXED SPACER
E RING
SPRING
BUTTON
BRACKET
WASHER
SHOE
HD SCREW
SPACER
FH SCREW
HAMMER
DRIVER ASSEMBLY
