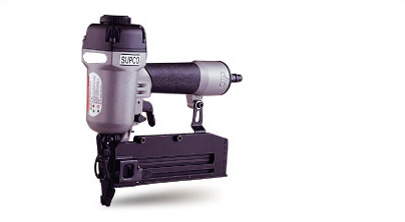

SUPCO SL-40
Narrow Crown Stapler, Senco " L"

[+] Click image below
Application
Trim & Molding, Finish Work,
Cabinet Work, Door & Window
casting, Floor Underlayment, Paneling
.g
18 GA. NARROW CROWN STAPLER 1 9/16 " (40mm), SENCO " L"
Part diagram: PDF JPEG List: WORD
Wire size: 18 GA.
Weight: 3.25 Lbs. (1.5 KG.)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37 		ES-18
OR-61
M5*25
CA-15
ES-19
OR-01
CA-11
OR-62
WS-32
SP-01
OR-71
PV-10
OR-04
OR-55
WS-33
OR-72
CY-18
OR-73
CY-19
OR-12
M8
WS-20
OR-74
PS-12
DB-27
PS-49
BP-09
BD-23A
M5
CA-12
VS-04
OR-21
OR-22
OR-23
VS-05
OR-24
SP-02

EXHAUST TURNER
CAP O RING
HD SCREW
BODY CAP
EXHAUST TURNER
O RING
VALVE GUIDE
O RING
GASKET
SPRING
POPPET O RING
POPPET VALVE
PISTON STOP O RING
CYLINDER SEAL O RING
RETAINING RING
O RING
LINDER
CYLINDER O RING
CYLINDER
CYLINDER O RING
NUT
WASHER
PISTON O RING
PISTON
DRIVER BLADE
DRIVER BLADE ASSEMBLY
BUMPER
BODY
NUT
END CAP
TRIGGER VALVE CAP
O RING
O RING
O RING
PILOT VALVE
O RING
SPRING

No. Part Item description
38
39
40
41
42
43
44
45
46
47
51
52
53
54
55
56
57
58
49
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
.		 OR-25
VS-06
VS-07
OR-14
SP-13
TG-06
TG-12
SM-10
DL-04
SM-03
FP-32
P-28
M3*8
ST-19
SM-36
SM-11
SM-37
SM-38
SP-36
SM-39
SW-09
SW-10
WS-01
HR-28
M5*16
BH5*12
MZ-07
BH5*14
SP-37
FC-29
FD-11
SP-06
SP-07
FC-30
FC-31
ORK-
SL40

O RING
TRIGGER VALVE HOUSING
TRIGGER VALVE HOUSING
O RING
SPRING
SECONDARY TRIGGER
TRIGGER
SPRING PIN
DOOR LATCH
E RING
FRONT PLATE
WEAR PLATE
HD SCREW
CONTACT ARM
SINGE FIRE PIN
SPRING PIN
SPRING PIN
LEVER
SPRING
BALL
WASHER
SEAL WASHER
WASHER
HANGER
HD SCREW
BH SCREW
MAGAZINE
BH SCREW
SPRING
FIXED SPACER
FEEDER
PLATE SPRING
RETAINER
COVER FIXED LEVER
MAGAZINE COVER
O RING KIT
.
