SUPCO SM-38
7/16" Crown Stapler(Senco M/Paslode/Duo Fast W18)
[+] Click image below
Application
- Furniture frames
- Boxes & crates
- Vinyl siding
.
18 GA. 7/16" CROWN SENCO M, PASLODE, DUO FAST W 18

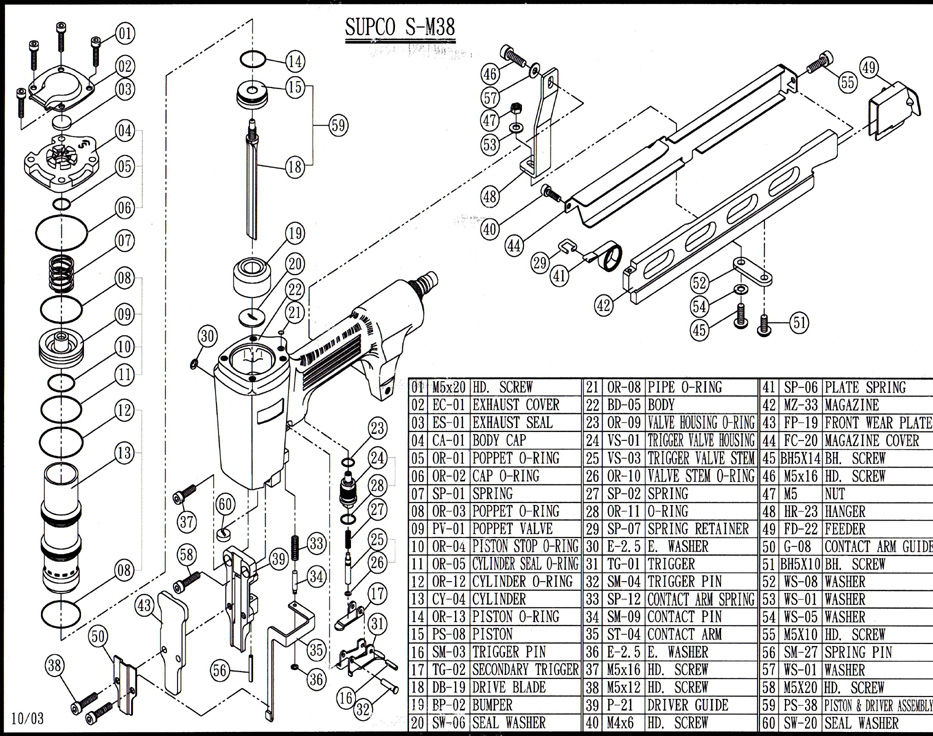

Part diagram: PDF JPEG List: WORD
Wire size: 18GA
Weight: 1.6kg (3.5lb)

No. Part Item description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30 		M5*20
EC-01
ES-01
CA-01
OR-01
OR-02
SP-01
OR-03
PV-01
OR-04
OR-05
OR-12
CY-04
OR-13
PS-08
SM-03
TG-02
DB-19
BP-02
SW-06
OR-08
BD-05
OR-09
VS-01
VS-03
OR-10
SP-02
OR-11
SP-07
E2.5

HD SCREW
EXHAUST COVER
EXHAUST SEAL
BODY CAP
POPPET O-RING
CAP O-RING
SPRING
POPPET O-RING
POPPET VALVE
PISTON STOP O-RING
CYLINDER SEAL O-RING
CYLINDER O-RING
CYLINDER
PISTON O-RING
PISTON
SPRING PIN
SECONDARY TRIGGER
DRIVER BLADE
BUMPER
NOZZLE (SEAL WASHER)
PIPE O-RING
BODY
VALVE HOUSING O-RING
TRIGGER VALVE HOUSING
TRIGGER VALVE STEM
VALVE STEM O-RING
SPRING
O-RING
SPRING RETAINER
E.WASHER

No. Part Item description
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60 		TG-01
SM-04
SP-12
SM-09
ST-04
ST-79
E-2.5
M5*16
M5*12
P-21
M4*6
SP-06
MZ-33
FP-19
FC-20
BH5*14
M5*16
M5
HR-23
FD-22
G-08
BH5*10
WS-08
WS-01
WS-05
M5*10
SM-27
WS-01
M5*20
PS-38

TRIGGER
TRIGGER PIN
CONTACT ARM SPRING
CONTACT PIN
CONTACT ARM
CONTACT ARM-VINLY SIDING ATTA.
E WASHER
HD SCREW
HD SCREW
DRIVER GUIDE
SCREW
PLATE SPRING
MAGAZINE
FRONT WEAR PLATE
MAGAZINE COVER
BH SCREW
HD SCREW
NUT
HANGER
FEEDER
CONTACT ARM GUIDE
BH SCREW
WASHER
WASHER
WASHER
HD SCREW
SPRING PIN
WASHER
HD SCREW
PISTON & DRIVER ASSEMBLY
